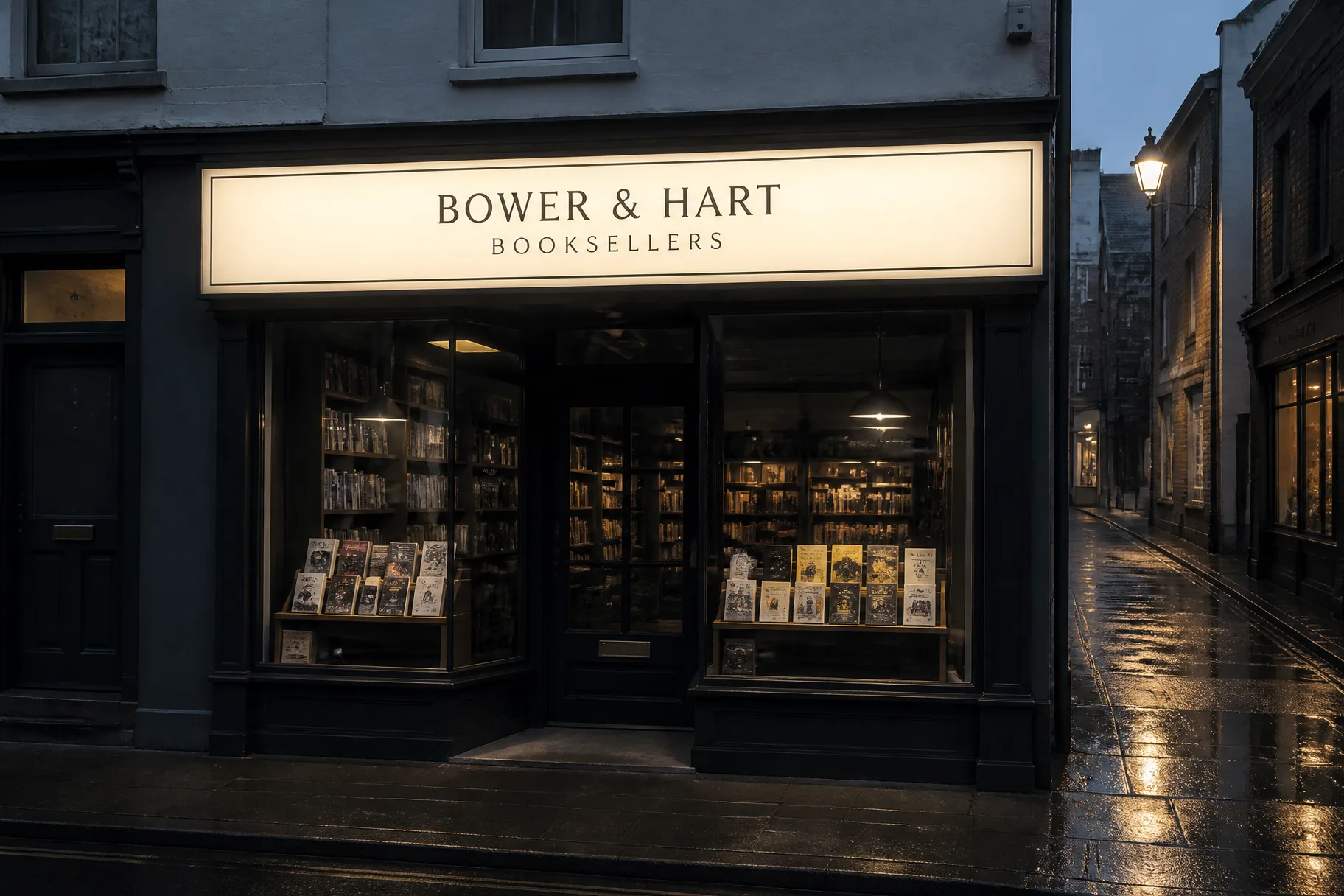

Face lit
Light passes out through the acrylic face. The brightest and clearest at distance, and the standard for retail frontages.
- Reads to
- 60m+
- Best for
- High street, retail parks
Service 02 · Illuminated
Illuminated signs

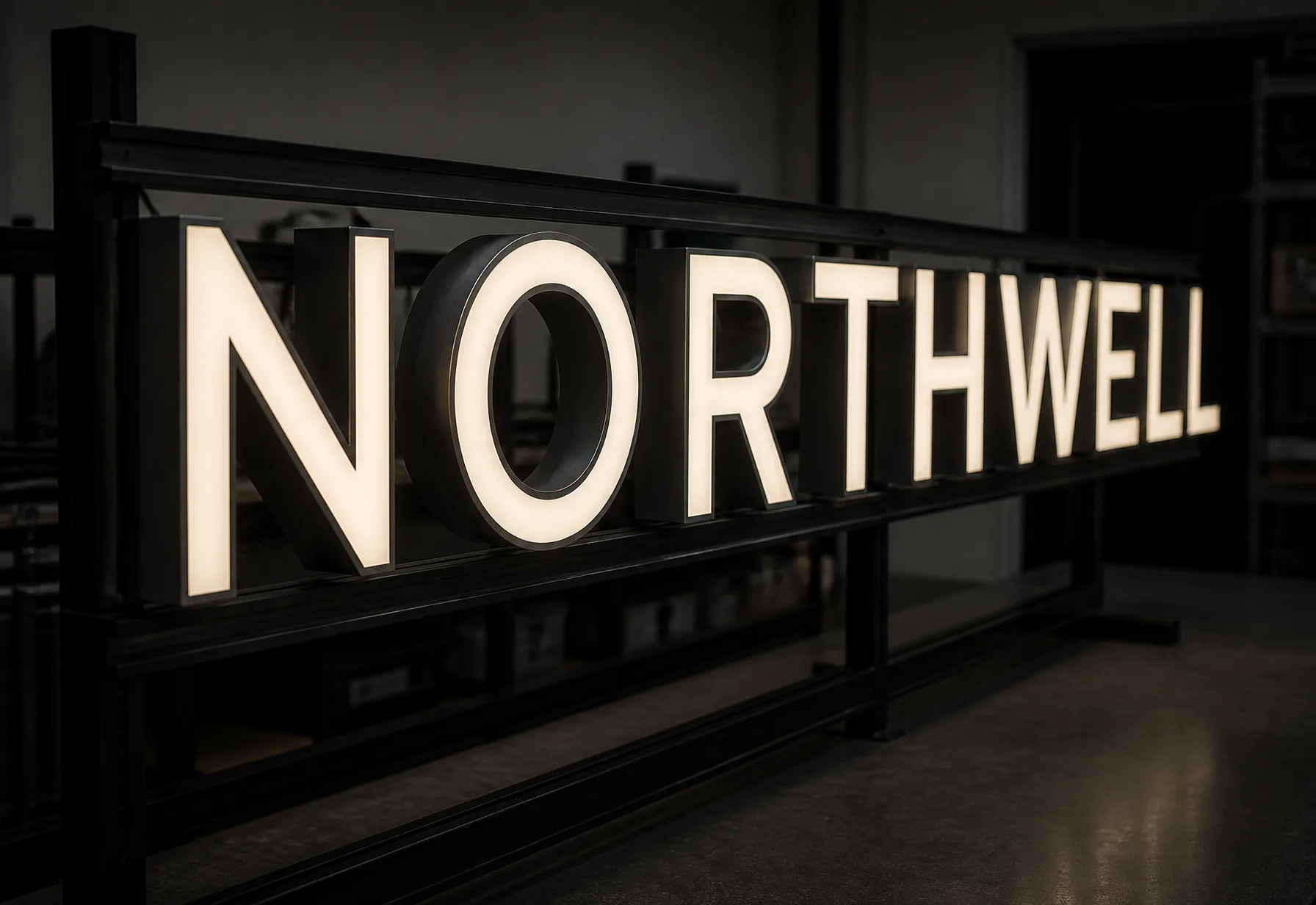

Built-up letters, face-lit trays, light boxes and projecting signs — fabricated, wired and burn-tested in our workshop before they go anywhere near your building. IP65 modules, remote drivers, and a photocell so it looks after itself.
01 / Method
Four ways to put
light in a sign.
They read differently at distance, cost differently to make and are treated differently by planning. We will tell you which one your building actually wants — and when the quieter option is the better one.
02 / Anatomy
Inside a built-up
letter.
Six parts, and every one of them is a decision. Hover a line to see where it sits — this is the section drawing that goes out with your quote, not a stock diagram.
01Opal acrylic face3mm cast opal, digitally cut to the letterform and vinyl-faced in your brand colour.3mm
02Fabricated returnAluminium, folded and welded to the letter outline, then wet-sprayed to a RAL or BS colour.45mm

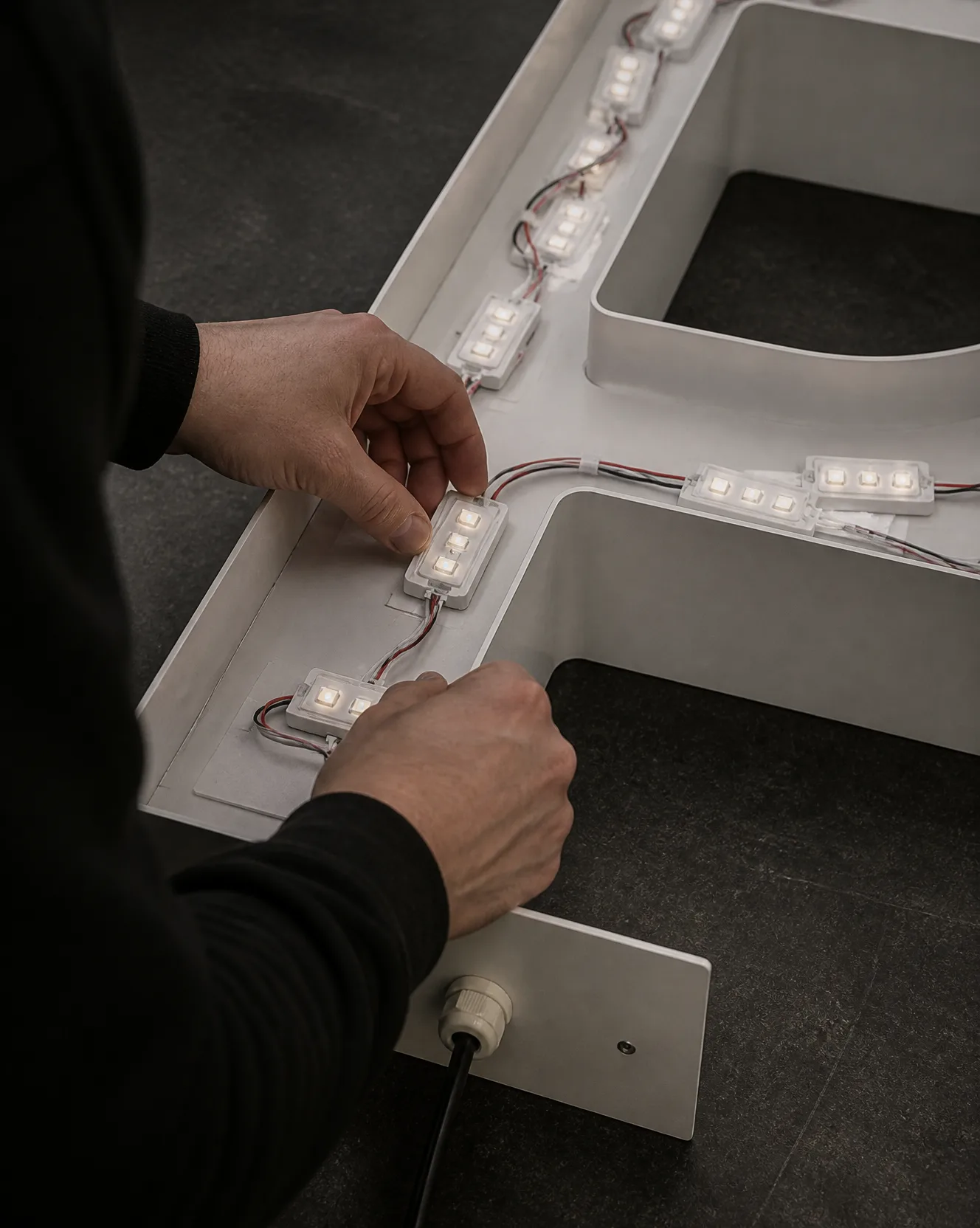

03LED modulesIP65 modules on adhesive pads, spaced to the letter width so the face lights evenly with no hot spots.IP65

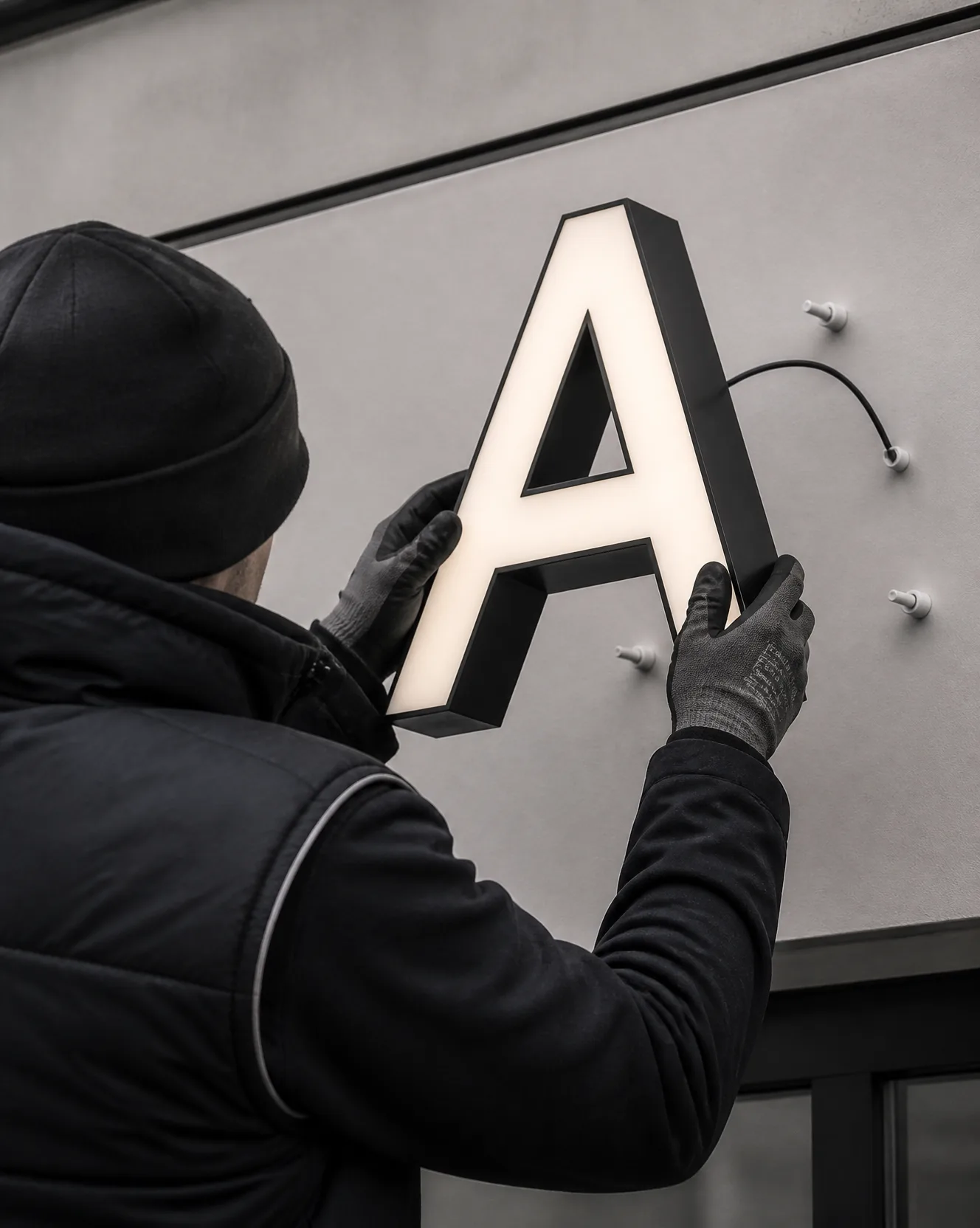

04Locator studsStainless studs bonded to the back and resin-fixed into the substrate, so nothing is screwed through the face.M6
05Cable & glandLow-voltage tails glanded out of the back and drawn through a single cored hole per letter.12V
06Remote driverKept inside the building in a serviceable enclosure — a failed driver is then a ten-minute job, not a hoist hire.IP20
03 / Sequence
From survey to switch-on.
04 / Recent
Lit, tested, installed.
05 / Budget
Lighting is where
specification matters.
Letter height, return depth, module type, driver location and access all move the figure — and a cheap module now is a hoist hire in two winters. We survey first, then issue one fixed price with the specification written down beside it.
Talk to the person who will
actually wire it.
Not a call centre and not a form in a queue. You get the surveyor who draws it, the workshop that builds it and the fitter who switches it on.
Mon–Fri 08:30–17:00 · Quotes within three working days · Fixed after survey
06 / Questions
The ones we
get asked most.
Do illuminated signs need planning permission?
Almost always advertisement consent, yes — illumination is what usually triggers it. We check the position for your address before quoting and prepare and submit the application when one is needed.
What does one cost to run?
Very little. A typical shopfront's worth of LED letters draws less than a kettle, and with a photocell it only runs when it is dark. We put the load on the drawing so your electrician knows what to expect.
Can you light a sign that is already there?
Often. Trough lighting can be added to a sound panel, and existing trays can be re-lamped to LED with a new face. We survey it and tell you honestly whether it is worth doing or whether a new tray costs less in the end.
What happens if a module fails?
It is covered for five years. Because the drivers sit inside the building and every letter is individually glanded, most faults are fixed from a ladder rather than from a hoist.
Free survey · Fixed price
See it lit before you buy it.
Send us a photo of the building and we will come back with a scaled drawing, a night visual and a fixed price — normally inside a week.
